Get to know your video doorbell and chime

Doorbell

1. Camera lens
2. Microphone
3. Light sensor
4. Doorbell
5. Sensor
6. Speaker
7. SET key
8. Micro USB plug

Chime
9. LED indicator
10. Set button
11. Speaker

Charge your video doorbell

Open the back cover and plug in the micro USB cable provided
to charge the camera. Charge the camera before setting up.
The light around the doorbell button will be blue when fully charged.

Setup your video doorbell

Download Toucan App  Scan QR code or visit toucan.solutions/app Available at Apple© App Store© and Google Play™

Open the app to add camera.

Press and hold the SET button until LED light blinks to enter the setup mode.

Follow the camera voice navigation to complete setup.

Pairing your chime with your video doorbell

Press and hold the Set button until LED light blinks

Press and hold the Set button until LED light blinks

Install your video doorbell and chime

Drill holes for wall anchor placements Insert wall anchors Mount wall bracket with screws

4. Place the doorbell on bracket

5. Tighten the lock screw with cross screw drive

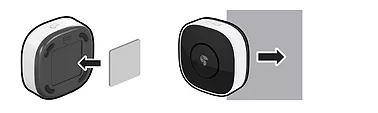

6. Place the adhesive tape to the back of the chime and stick to the wall in a suitable location inside your home*
